airFiber 5 High-Band
$999.00

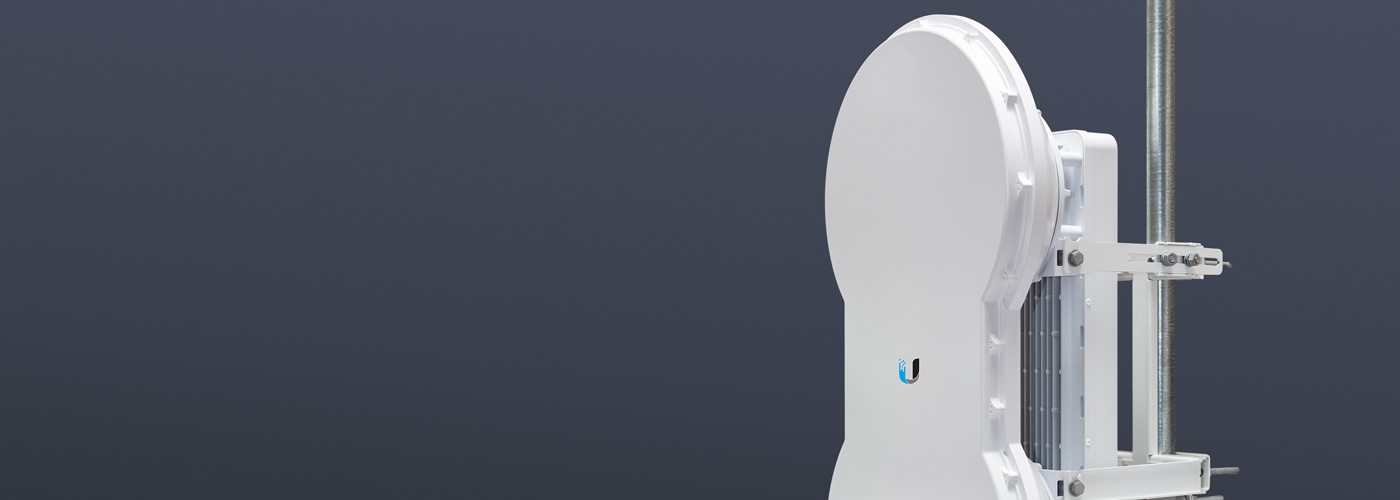

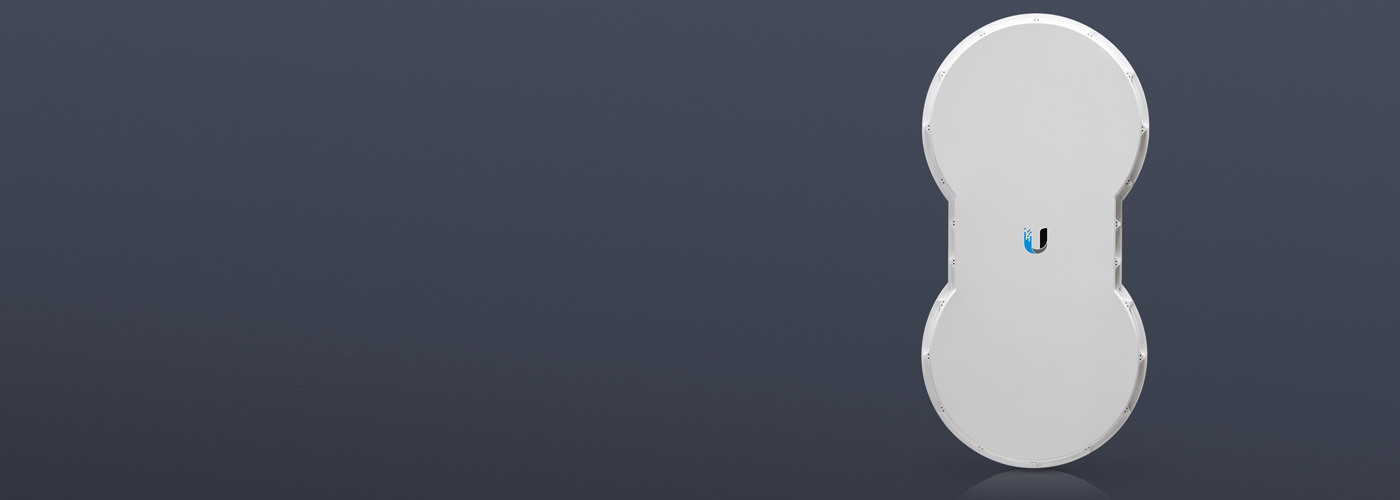

airFiber 5 Mid-Band
AF-5
$999.00
Compact, wireless point-to-point mid-band bridge with a 1.2+ Gbps throughput rate.

5 GHz, mid-band 100+ km link range

1.2+ Gbps throughput

Separate integrated TX and RX antennas

Integrated GPS sync

1+ Mpps processing

Note. This product should be purchased in pairs in order to form links.

airFiber 5XHD
$429.00
Technical Specifications
Mechanical
Dimensions 938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1")
Weight 16 kg (35.3 lb)
Mounting Pole mount kit (Included)
Wind loading 863 N @ 200 km/h (194 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
(1) 10/100 MbE RJ45 port
Auxiliary port (1) RJ-12, alignment tone port
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply 50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range 42–58V DC
Max. power consumption 40W
Ambient operating temperature -40 to 55°C (-40 to 131° F)
Certifications CE, FCC, IC
System
Max. throughput 1.2+ Gbps
Max. range* 100+ km
*Dependent on regulatory region.
Packets per second 1+ million
Encryption 128-Bit AES
Uplink/downlink ratio Programmable in Half Duplex mode
Radio frame synchronization GPS
RF
Operating frequency 5470 - 5600 MHz, 5650 - 5850 MHz (FCC 15.247, 15.407, IC RSS 210)
5470 - 5875 MHz (ETSI EN 301 893, EN 302 502)
5470 - 5950 MHz (Other regions)
GPS GPS clock synchronization
EIRP ~50 dBm
*Dependent on regulatory region and frequency band.
Frequency accuracy ±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel bandwidth 10/20/30/40/50 MHz
Modulation 1024QAM MIMO
256QAM MIMO
64QAM MIMO
16QAM MIMO
QPSK MIMO
½ Rate QPSK xRT
¼ Rate QPSK xRT
Gain
TX
RX

23 dBi
23 dBi
Beamwidth
Front-to-back ratio 70 dB
Polarization Dual-slant
Cross-polarity isolation > 28 dB
LEDs
System (12) Status LEDs: Data port pink/activity
Data port speed
Management port link/activity
Management port speed
GPS synchronization
Master/slave
Link status
Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload
Remote and local displays (Calibrated signal strength)
