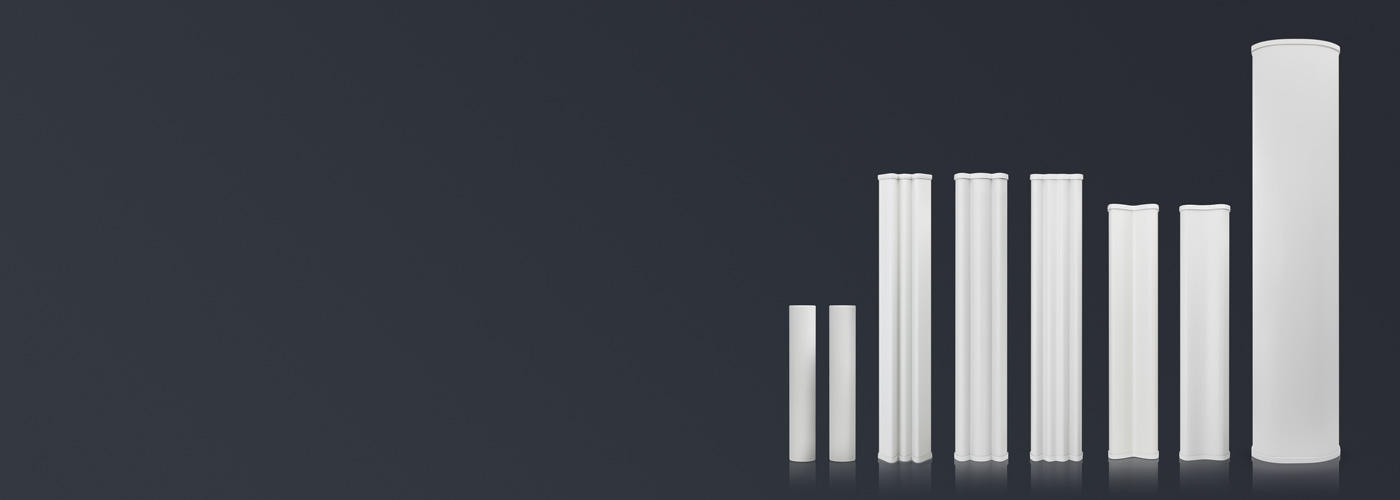

airMAX® 2x2 BaseStation Sector Antenna

Pair the airMAX® Sector Antenna with a RocketM BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.

Models: AM‑2G15‑120, AM‑2G16‑90, AM‑3G18‑120, AM‑5G16‑120, AM‑5G17‑90, AM‑5G19‑120, AM‑5G20‑90, AM‑9M13, AM‑M‑V5G‑Ti, AM‑V2G‑Ti, AM‑V5G‑Ti

Breakthrough Design and Performance

The innovative airMAX® Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.

Reduced Interference, Higher Gain

Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.

RF Isolation and Beamwidth Options

The versatile airMAX® Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.

Industrial-Strength Construction

airMAX® Antennas are designed with robust mechanical design for outdoor application use.

Plug and Play Integration

Every airMAX® Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.

Installing the airMAX® Titanium Sector

Model Comparison

AM-9M13
AM-9M13
AM-2G15-120
AM-2G15-120
AM-2G16-90
AM-2G16-90
AM-V2G-Ti
AM-V2G-Ti
AM-3G18-120
AM-3G18-120
Frequency900 MHz2.4 GHz2.4 GHz2.4 GHz3 GHz
Gain13 dBi15 dBi16 dBi60°: 17 dBi
90°: 16 dBi
120°: 15 dBi
18 dBi
AM-5G16-120
AM-5G16-120
AM-5G17-90
AM-5G17-90
AM-M-V5G-Ti
AM-M-V5G-Ti
AM-5G19-120
AM-5G19-120
AM-5G20-90
AM-5G20-90
Frequency5 GHz5 GHz5 GHz5 GHz5 GHz
Gain16 dBi17 dBi60°: 17 dBi
90°: 16 dBi
120°: 15 dBi
19 dBi20 dBi
AM-5G19-120
AM-5G19-120
AM-5G20-90
AM-5G20-90
AM-V5G-Ti
AM-V5G-Ti
Frequency5 GHz5 GHz5 GHz
Gain19 dBi20 dBi60°: 21 dBi
90°: 20 dBi
120°: 19 dBi
