airMAX IsoStation 5AC Bridge

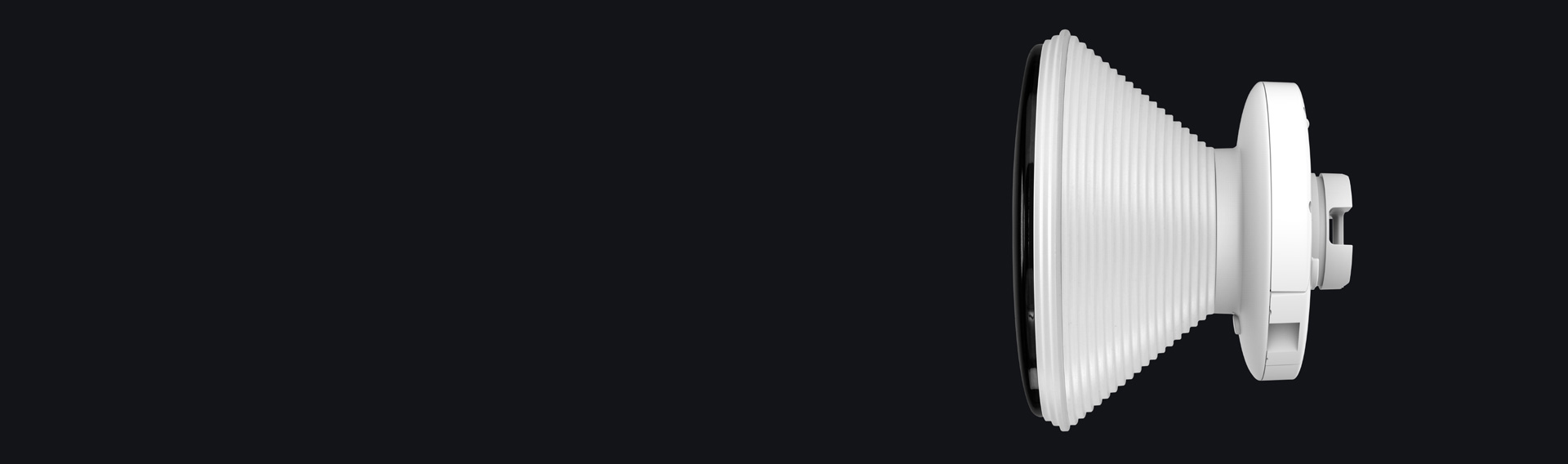

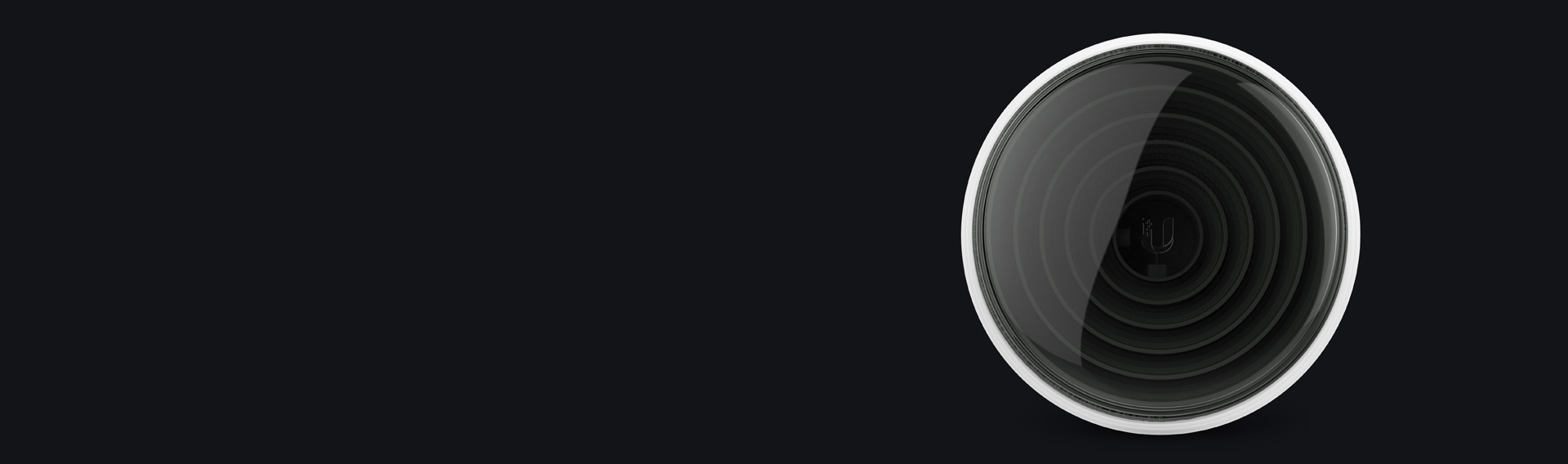

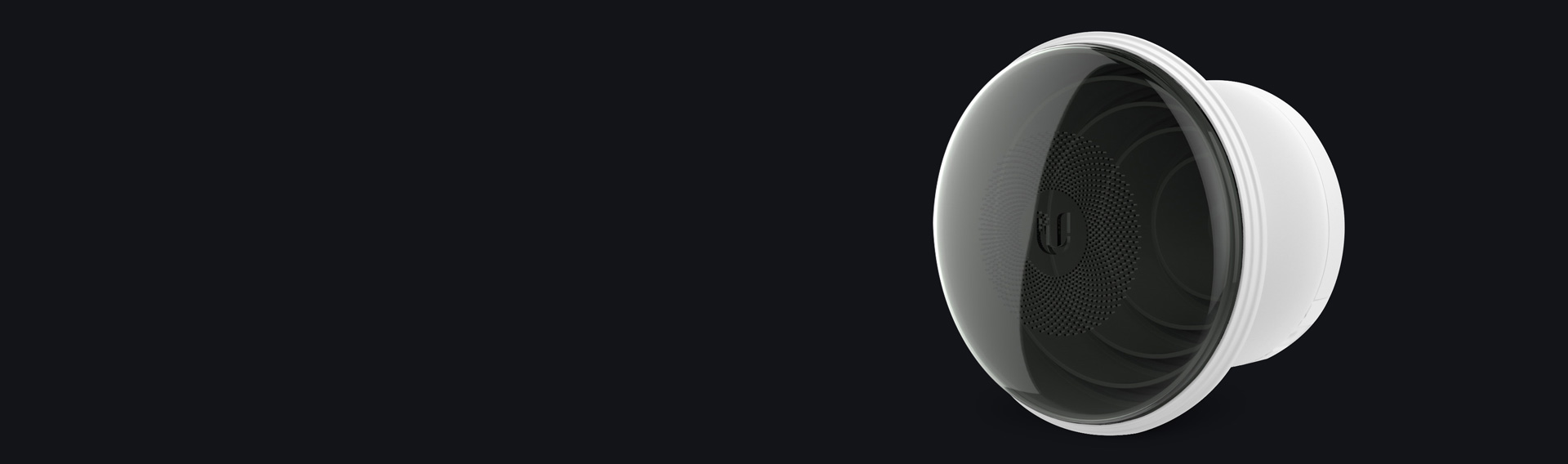

airMAX IsoStation 5AC
IS-5AC
$129.00
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an interchangeable horn antenna.

5 GHz, 10+ km link range

450+ Mbps throughput

Isolation antenna design rejects RF noise

Dedicated spectral analysis radio

airMAX PrismStation Horn
$79.00
Technical Specifications
Mechanical
Dimensions Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6")
With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9")
Weight Without horn: 408.2 g (0.9 lb)
With horn: 725.7 g (1.6 lb)
Mounting Pole mount kit (Included)
Wind loading 36N at 200 km/h (8.09 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Max. power consumption 8.5W
Supported voltage range 20—27V DC
LED (1) Power
Ambient operating temperature -40 to 70 C (-40 to 158 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 14 dBi
Beamwidth 45° (Default horn)
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
