airMAX LiteBeam M5
$49.00
airMAX LiteBeam 5AC
$65.00

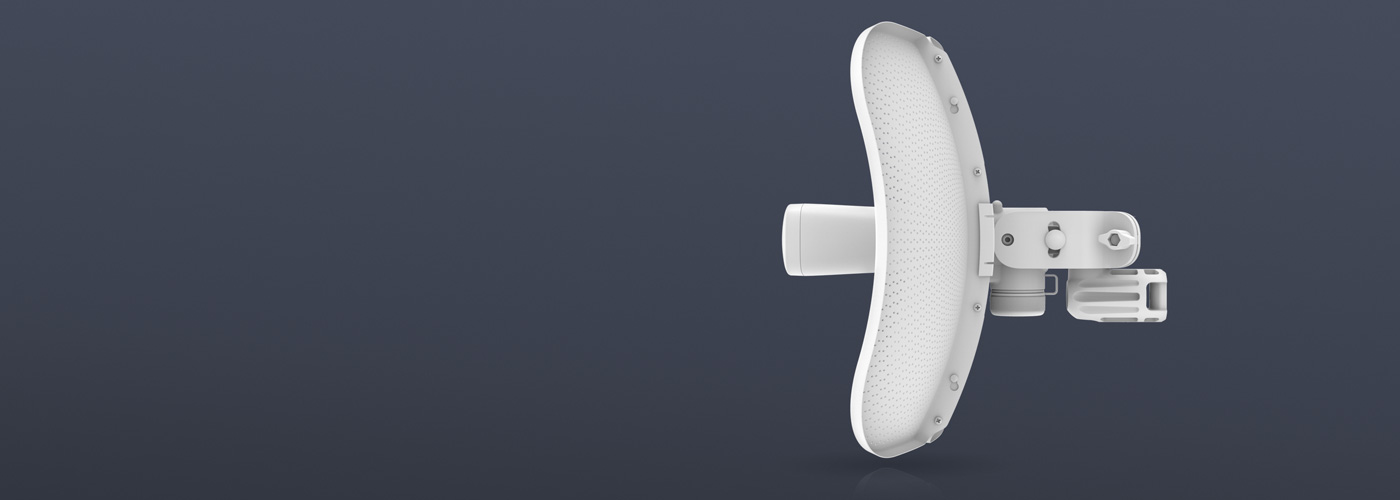

airMAX LiteBeam 5AC Long-Range
LBE-5AC-LR
$109.00
The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links.

5 GHz, 25+ km link range

450+ Mbps throughput

Easy to assemble

airMAX LiteBeam 5AC Extreme-Range
$129.00
Technical Specifications
Mechanical
Dimensions512 x 385.8 x 258.3 mm (20.2 x 15.2 x 10.2")
WeightWithout mount: 1.4 kg (3 lb)
With mount: 1.7 kg (3.8 lb)
Enclosure materialAluminum, plastic
MountingPole mount (Kit included)
Wind loading550 N at 200 km/h (123.6 lbf at 125 mph)
Wind survivability200 km/h (125 mph)
Hardware
Networking interface(1) GbE RJ45 port
Power methodPassive PoE 2-pair (4, 5+; 7, 8 return)
Power supply24V, 0.3A gigabit PoE adapter (Included)
Supported voltage range20-27V DC
Max. power consumption7W
Gain26 dBi
LEDsPower, Ethernet
ESD/EMP protection Air/contact ± 24kV
Channel sizesPtP mode: 10/20/30/40/50/60/80 MHz
PtMP mode: 10/20/30/40 MHz
Ambient operating temperature-40 to 70° C (-40 to 158° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
