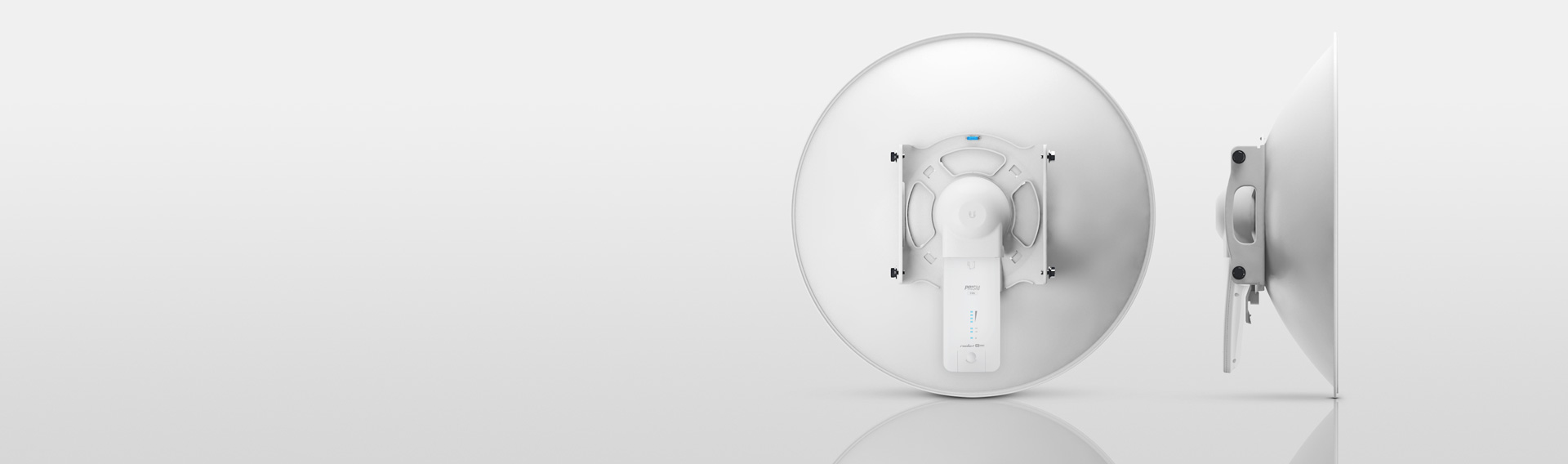

Rocket® Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas, in both 5 and 2.4 GHz.
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
The Rocket® Prism AC features enhanced protection against ESD events.
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
|Frequency||5 GHz||Full-Band 5 GHz||Full-Band 2.4 GHz||Full-Band 5 GHz|
|Throughput||150+ Mbps||500+ Mbps (Max. 80 MHz)||330+ Mbps||500+ Mbps (Max. 80 MHz)|
|Ports||(1) 10/100 Ethernet||(1) 10/100/1000 Ethernet||(1) 10/100/1000 Ethernet Port||(1) 10/100/1000 Ethernet Port|
|GPS Sync||(supported in v8.3.1 release)||✔|
