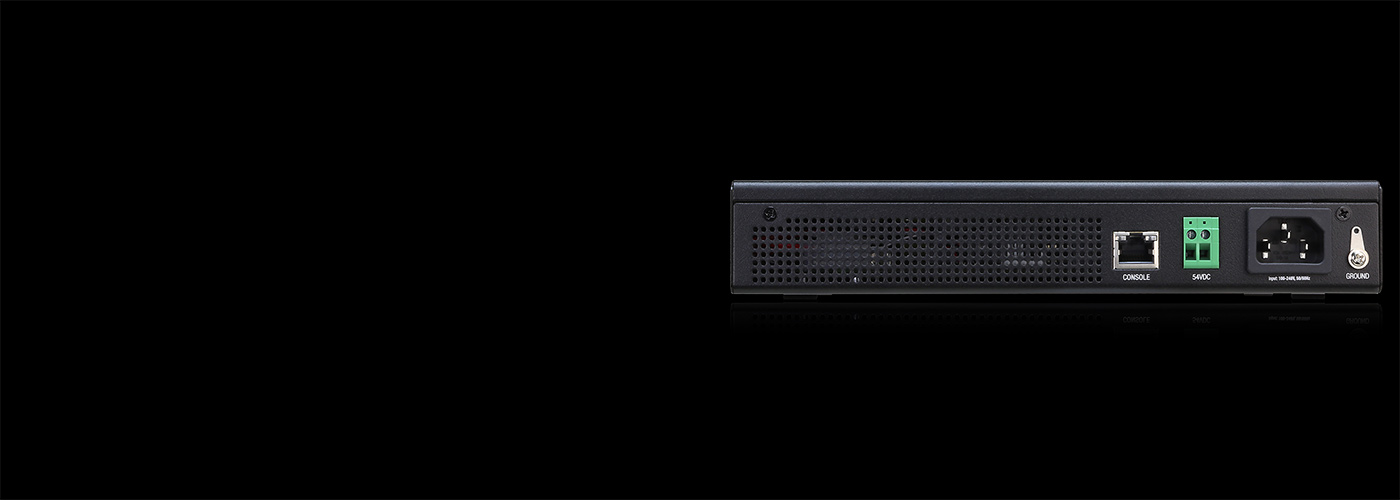

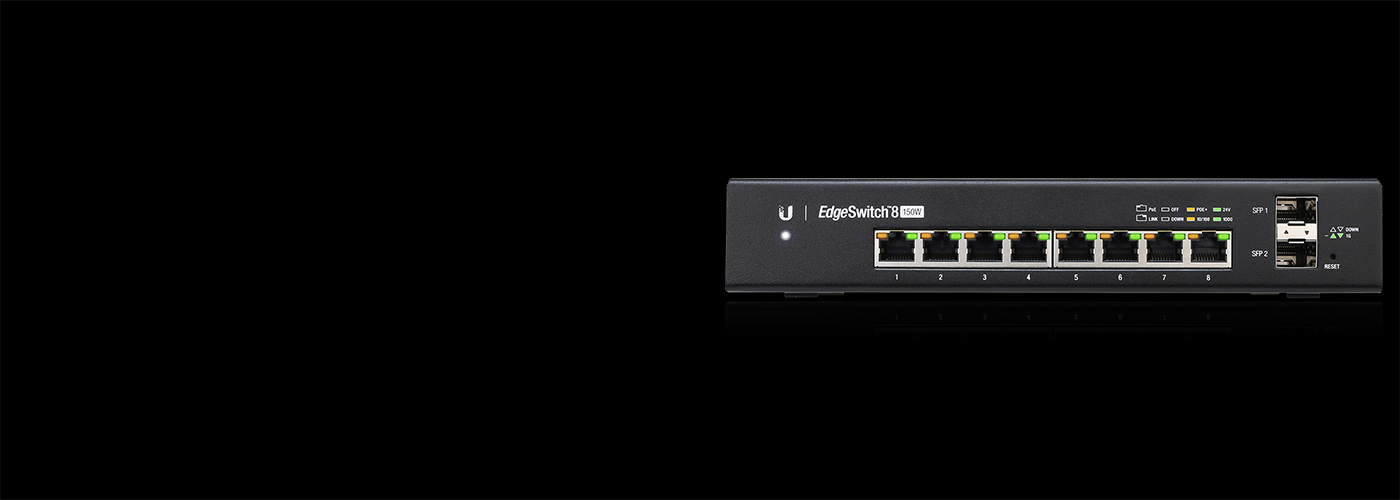

EdgeSwitch 8 PoE
ES-8-150W
$199.00
Gigabit switch with (8) RJ45 ports, (2) SFP ports, and a 150W power supply.

(8) GbE RJ45 ports with 24V passive PoE

(2) SFP ports

150W total PoE availability

Desktop-mountable

Installation Guide
Technical Specifications
Mechanical
Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
WeightWithout Wall Mount: 1.72 kg (3.79 lb)
With Wall Mount: 1.8 kg (3.96 lb)
Hardware
Networking Interface(8) 10/100/1000 Mbps RJ45 Ports
(2) 1 Gbps SFP Ports
Management Interface Ethernet In-Band, UART Console Out-of-Band
PoE Interface(8) PoE/PoE+ 2-Pair (+1, 2; -3, 6)
(8) 24V/0.7A 2-Pair (+4, 5; -7, 8)
Total Non-Blocking Line Rate 10 Gbps
Max. Power Consumption 20W (Excludes PoE Output)
Power Method
AC
DC

AC/DC Integrated PSU, Universal Input
DC External, (Self-Correcting Polarity Protection) Terminal Block Input
Power Supply Internal AC/DC 150W
Operating Voltage
AC
DC

100 to 240VAC, 50-60 Hz
42 to 56VDC
LEDs
System
RJ45 Data Ports
SFP Data Ports

Status
PoE; Link/Speed/Activity
Link/Speed/Activity
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Operating Temperature
Internal AC/DC at 150W
Internal AC/DC at 100W
External DC

-25 to 45° C (-13 to 113° F)
-25 to 55° C (-13 to 131° F)
-25 to 60° C (-13 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
